Zuma MS Normal Auto Hinges

Product Code : ZHS-AH03

Category : Hinge Series

Sub category : Zuma Auto Hinges

Description

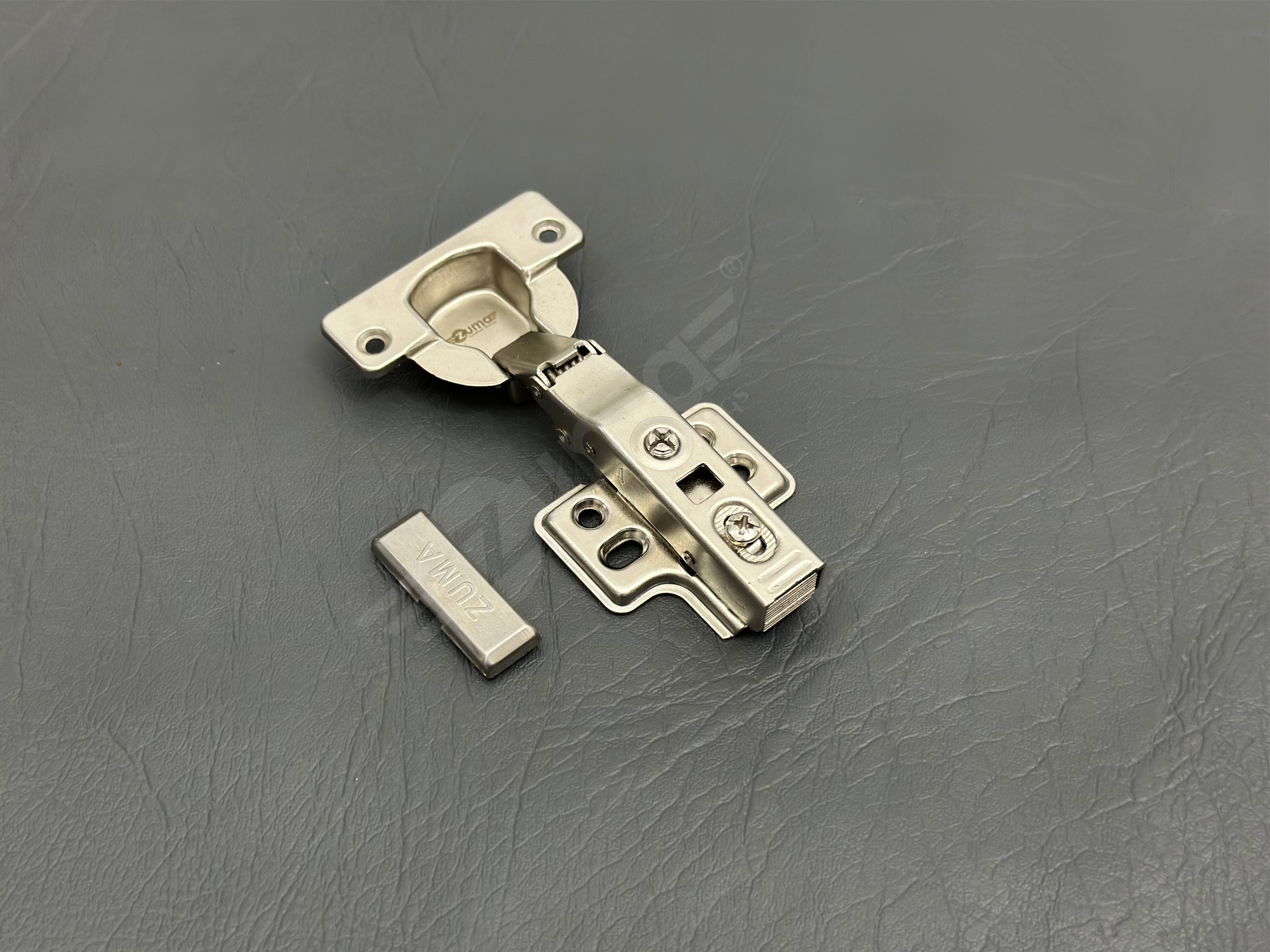

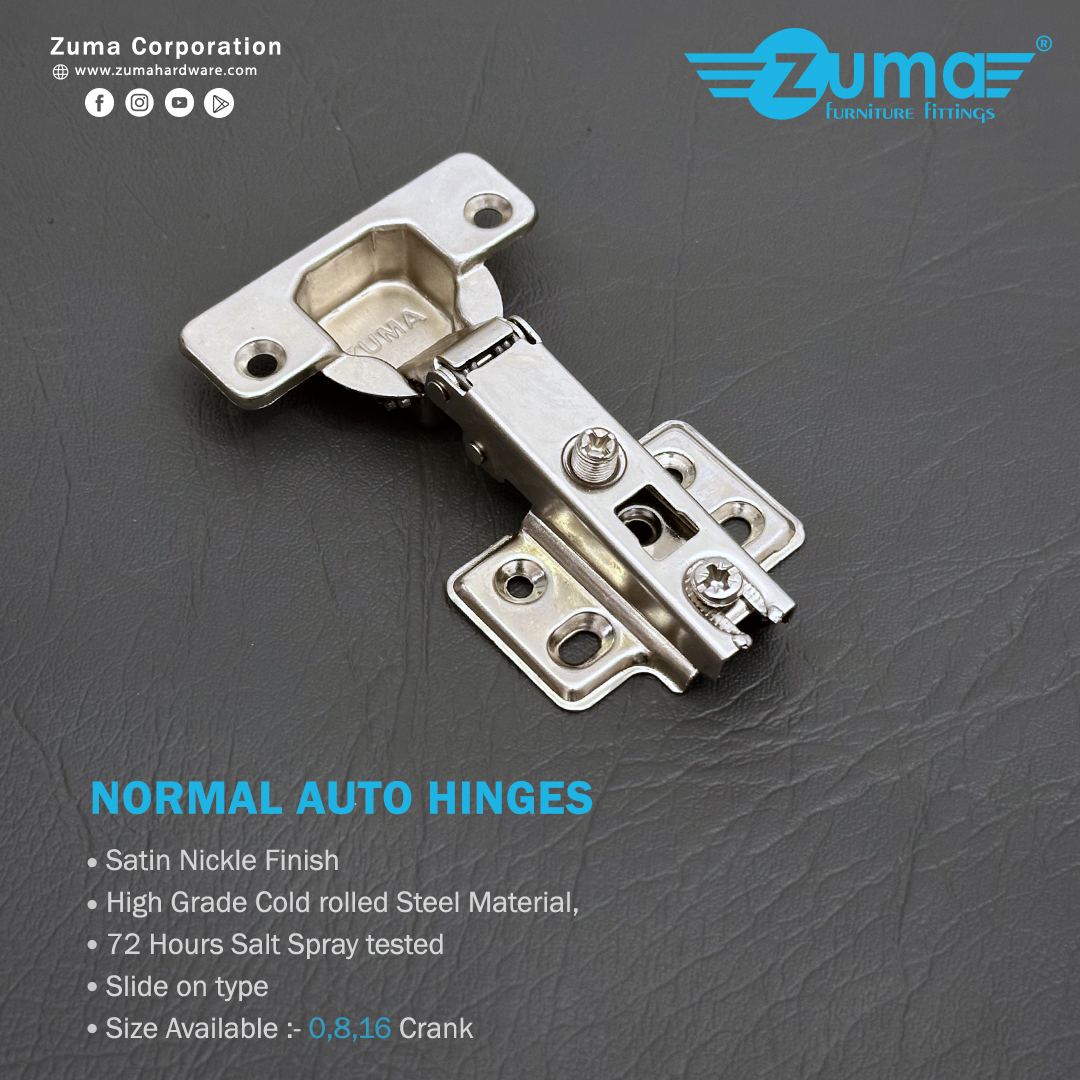

MS normal auto hinges are a type of concealed hinges that can be used for wooden doors, aluminum profiled doors, or glass doors. They are made of mild steel and have a nickel finish. They have different crank sizes, such as 0°, 8°, or 16°, to adjust the opening angle of the door. They are also known as self-closing hinges or auto hinges, as they can close the door automatically after opening. Specification : Wide opening angle for easy storage in cabinet, Concealed hinges for easy installation, Nickel plated for corrosion resistance, These are high-quality auto hinges that have a high-strength hydraulic pump and a clip-on mechanism.


Size Available 0/8/16 Crank
Opening Angle 105°
Depth of Hinge Cup 11.3mm
Diameter of hinge cup 35mm
Door Dimension 3mm - 7mm
Door Thickness 14mm - 23mm
Hinge cup material Iron with nickel plating
Hinge arm material Iron with nickel plating
Hinge plate material Iron with nickel plating
master pack 100 set
